- Preamplification: stepless from 6 dB to +20 dB
- Threshold range: stepless from 36 dB to + 22 dB
- Ratio range: stepless from thomann 1.1: 1 to limit (40: 1)
- Attack range: stepless from 20 mS to 75 ms
- Release range: infinitely variable from 100 ms to 2.5 seconds
- FF / FB: Feed-Forward or Feed-Back VCA control
- Maximum output level: balanced and floating transformer output
- Max. Output from 20 Hz to 40 kHz is +23 dBu
- Total Harmonic Distortion and Noise: @ 1 kHz
- +20 dBu output level
- No load
- Main Output, compressor bypassed: better than 0.0006%
- Main Output, compressor activated: better than 0.02%
- Noise: measured at the main output
- Unweighted
- 22 Hz-22 kHz
- Terminated 40 Ohms
- Frequency range: Main output
- Unity Gain @ 18 Hz
- +/- 3 dB. @ 150 kHz 3 dB
- Crosstalk measured channel to channel: 90 dB @ 15 kHz
- Monitor INPUT LEVEL and GAIN REDUCTION
- Construction: API Series 500 rack format
-10%
Back to products
BOSE DesignMax DM5SE Black Ζεύγος Ηχείων
€945,00 Original price was: €945,00.€799,00Current price is: €799,00.

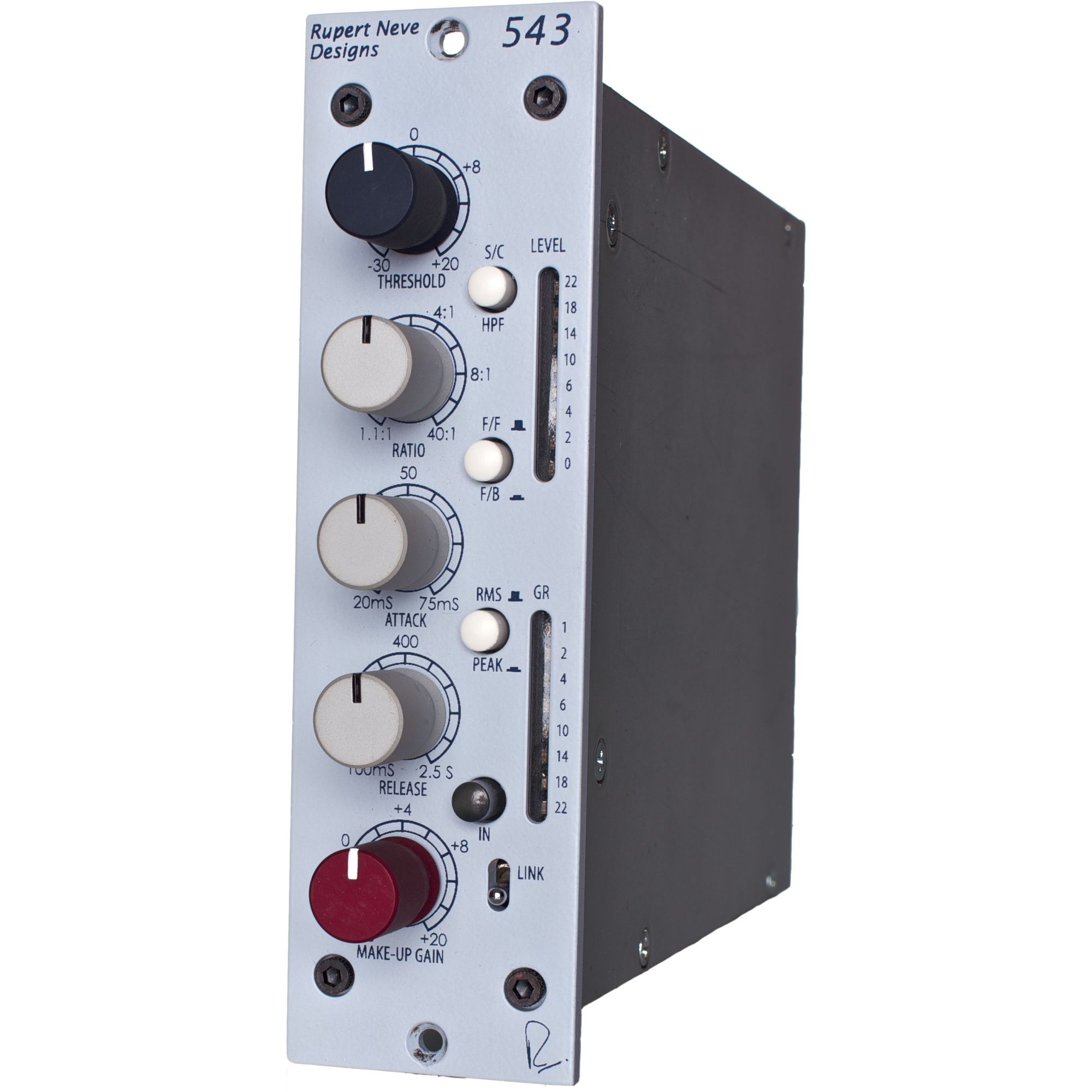

RUPERT NEVE DESIGNS 543 (Series 500) Compressor Limiter
€1.354,00 Original price was: €1.354,00.€1.219,00Current price is: €1.219,00.
Compressor Limiter (500 series module)
Αποστολή σε 1-3 ημέρες
Κωδικός προϊόντος:
H05RN00024
Κατηγορίες: Επαγγ/κός Ήχος - Εικόνα, Επεξεργαστές, Επεξεργαστές Format 500
Περιγραφή
Επιπλέον πληροφορίες
Brand | Rupert Neve Designs |
---|
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
